Description

SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 8500W RMS at 1-ohm - Steve Meade Designs

  • 1 Channel Subwoofer Monoblock
  • Exclusive SMD Design ~ Class D
  • 1 - 4 Ohm Stable ~ 8500 Watts @ 1 Ohm RMS
  • VM-1 Voltmeter ~ Fans ~ Linkable
  • Acrylic Window ~ Digital LED Lighting w/ Remote
  • Bass Knob ~ LED Indicators ~ Made in Korea

Key Features

  • Exclusive SMD design with VM-1 voltmeter
  • Front acrylic window and digital RGB lighting
  • IR remote control for LED patterns and colors
  • Professional Tiffany RCA terminals
  • Dual cooling fans for Enhanced Performance
  • Korean components, OFC Internal Wiring

Product Overview

Introducing the SMD-8500.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest," says Steve Meade.

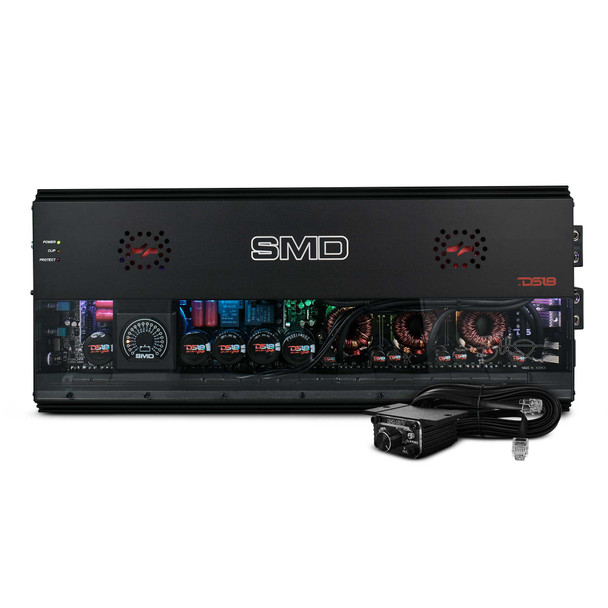

With the SMD-8500.1D, we achieved that and more. What sets the SMD-8500.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-8500.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 3300W RMS at 4-ohm, 5700W RMS at 2-ohm, and 8500W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.

The SMD-8500.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a <0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 740A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-8500.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with the SMD-8500.1D’s groundbreaking design and raw power!

Manual - Technical Data

Exclusive SMD design with VM-1 voltmeter

Exclusive SMD design with VM-1 voltmeter

Front acrylic window and digital RGB lighting

Front acrylic window and digital RGB lighting

IR remote control for LED patterns and colors

IR remote control for LED patterns and colors

Professional Tiffany <br> RCA terminals

Professional Tiffany
RCA terminals

Dual cooling fans <br> For Enhanced Performance

Dual cooling fans
For Enhanced Performance

Korean components <br> OFC Internal Wiring

Korean components
OFC Internal Wiring



SPECS AUDIO FEATURES MEASUREMENT

SKU
SMD-8500.1D
RMS Power @ 4 ohm (14.4v)
3300W
RMS Power @ 2 ohm (14.4v)
5700W
RMS Power @ 1 ohm (14.4v)
8500W

Frequency Response
15Hz-250Hz
Signal to Noise Ratio
>98dB
Efficiency @ 4ohm
>86%
Damping Factor
300
Input Impedance
22K ohm
Total Harmonic Distortion (THD)
<0.02%
Low Level Input Range
200mV-6V
High Level Input
NO
Selectable X-Over
Fixed LPF
X-Over Filter Range
35Hz-250Hz
Bass Boost Range
0~9dB
Bass Boost Frequency
30Hz-60Hz
Infrasonic Filter
10Hz-30Hz
Phase Selector
0~180

Amplifier Class
Digital
Amplifier Type
Subwoofer
Number of Channels
1
Minimum Impedance
1 ohm
Led Indicator
Power / Protection / Clip
Power Input Terminal Size
0 AWG
Recommended Fuse Size (Not Included)
740A
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Black
Metal Adjustment Knobs with Click Position
Yes
Professional Tiffany RCA Connectors
Yes
Remote Level Knob with Clip indicator
Yes (Metal Case)
Linkable (Strap mode) Amplifier
Yes
Reliable Heavy Duty Korean Board Design
Yes
Very High Efficiency Digital Circuit Design
Yes
Exclusive SMD design with VM-1 Voltmeter
Yes
Front Acrylic Window and Digital RGB Lighting
Yes
IR Remote Control for LED patterns and colors
Yes

Overall Length
23.3" / 562mm
Overall Width
9.15" / 232mm
Overall Height
3" / 76mm
Heatsink Length
21.6" / 550mm
Gross Single Unit Weight
22Lb / 9.97kg

* Manuals and/or specifications are subject to change without prior notice.
